FUNCTIONAL TESTER

INNOVATIVE FUNCTIONAL TESTERS

ABOUT FUNCTIONAL TESTERS

Mainly there are two kinds of functional testers:

  • Functional testers that use manual press mechanics.

  • Functional testers that use Pneumatic press mechanics.

There are situations that both options are incorporated in the same fixture.



Manual fixtures



Are most common to use. These fixtures are very robust and designed to check tens of thousands of UUT (PCB) before needed any maintenance. Fixture can have one handle or two handles to support bigger PCBs surface to test.

Pneumatic fixtures



These fixtures are extremely robust and designed to check high quantities of UUT (PCB)

Main reason to use this kind of fixture is for testing Automation

Which means Automatic testing with less human interaction

Those fixtures are usually used in production line which has huge QTY of UUT to test and time for testing is limited .

With this method of testing PCB Panels are better to be tested together.

Benefits

Customization and flexibility

Fully customized customer-oriented design and manufacturing. Open minded for any customer desire for testing ideas.

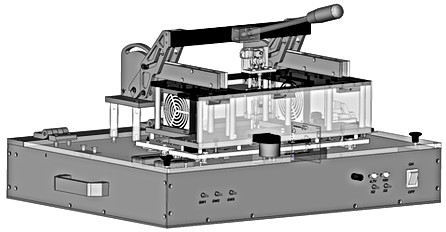

3D Designs

Fixture is designed in 3D so customer can see pictures of the fixture Before applied to production.

Features

  • Tester can be customized by size, height and mechanism type.

  • Fixture can support wireless B.O.N (Bed of nails) for top access.

  • Fixture box and units inside – can be customized according to customer desire.

  • Box inputs and outputs are according to customer specification.

  • Any Protection for user protection can be applied to the fixture.

For any further information on the Functional Tester Contact us and a field specialist will get in touch with you shortly.

View our Functional Tester models
